Articulated Finger Probe of IEC

Photos

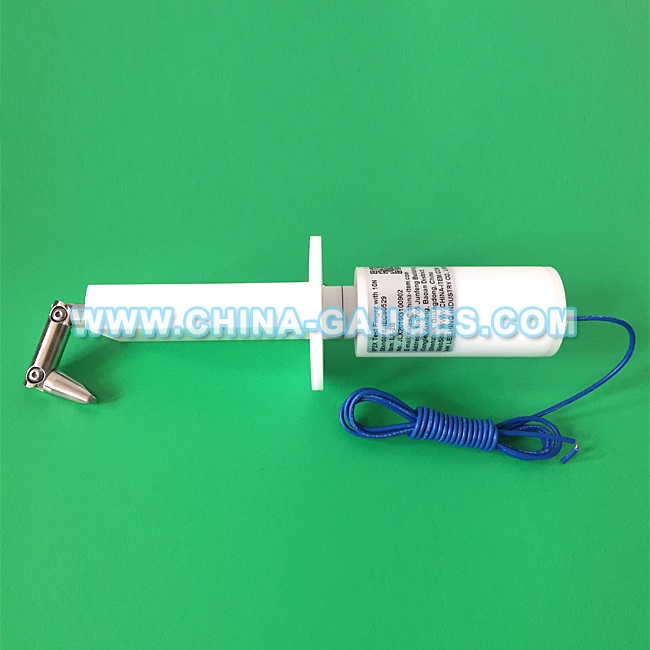

Articulated Finger Probe of IEC

IEC 60529 Test Finger Probe B with 10N Force for IPX Test Equipment

Force Level: 10N

1. Conforms to: Standard IEC 61032-1997 / IEC 60529-2001 / IEC60335 / IEC60884 / IEC60745 / IEC60045 / IEC60950 / IEC60238 / IEC60601 / IEC60968 / IEC61010 / IEC60065 etc.

2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric shock for household and similar electrical problem.

Technical Parameters:

Knurled Finger Diameter: 12 mm

Knurled Finger Length: 80 mm

Knurled Finger Length: 8 cm

Handle diameter: 4,5 cm

Handle length: 9,5 cm

Application:

1. The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.

2. In the prevent electric shock test, wirings , power devices, and lighting devices are needed.

Note:

Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.
