8,6 mm Small Finger Probes - Test Probe 18 of IEC61032

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-1218

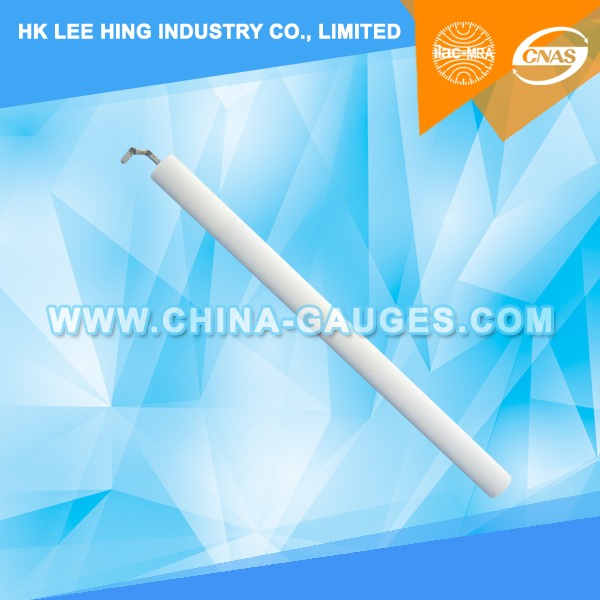

Small Finger Probe 8,6 Test Probe 18 of IEC 61032

Conforms to: Standard IEC61032-1997.

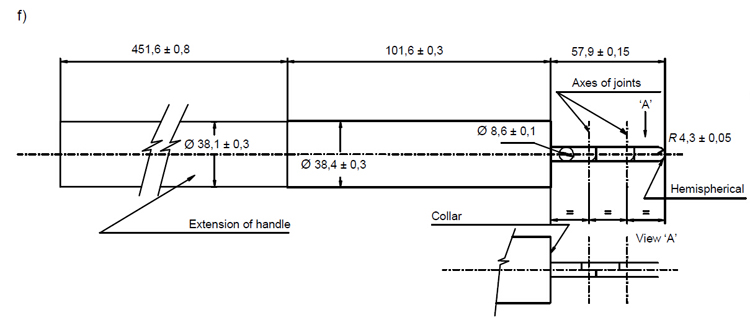

IEC 61032 Figure 12 – Test probe 18 (small finger probe ∅ 8,6)

Finger: metal material
Handle: insulating material

Technology Parameter:

Knurled finger diameter:8.6 mm

Head radius:4.3 mm

Knurled finger length:57.9 mm(three knurls,19.3 mm/knurl)

Notes:

The extension of the handle represents the arm of the child.

And the handle is provided with an extension 451,6 mmlong, and the probe should be applied with or without this extension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
