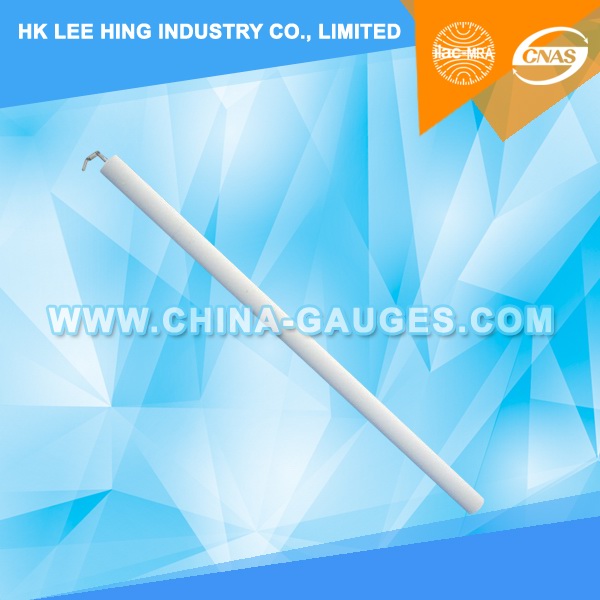

Test Probe 19 of IS 1401

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-1219

Test Probe 19 of IS 1401 Figure 13

Basic Introduction:

1) According to: IS 1401:2008 / IEC 61032:1997.

2) The Test Probe 19 is intended to simulate access to hazardous parts by children of 36 months or less.

Technical parameters:

1) Knurled Finger Diameter: 5.6 mm

2) Knurled Finger Length: 44 mm

3) Knurled Finger Head Radius: 2.8 mm

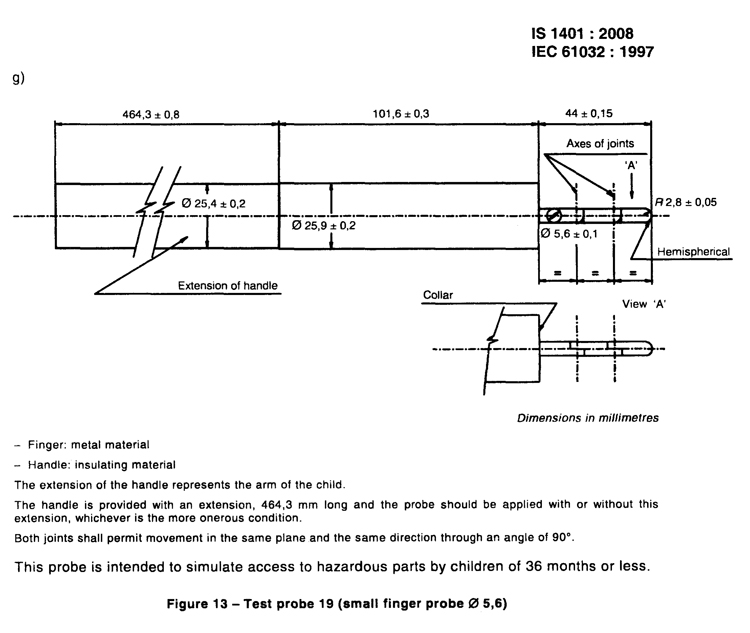

4) According to IS 1401:2008 Figure 13 (The Test Probe 19 Small Finger Probe ∅ 5,6).

- Finger: metal material

- Handle: insulating material

The extension of the handle represents the arm of the child.

The handle is provided with an extension, 464,3 mm long and the probe should be applied with or without this extension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of 36 months or less.

test probe 19
