Test Probe 18 of EN 61032

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-1218

Test Probe 18 of EN 61032 Figure 12

Basic Introduction:

1) According to: BS EN 61032:1998 / IEC 61032:1997.

2) The Test Probe 18 is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.

Technical parameters:

1) Knurled Finger Diameter: 8.6 mm

2) Knurled Finger Length: 57.9 mm

3) Knurled Finger Head Radius: 4.3 mm

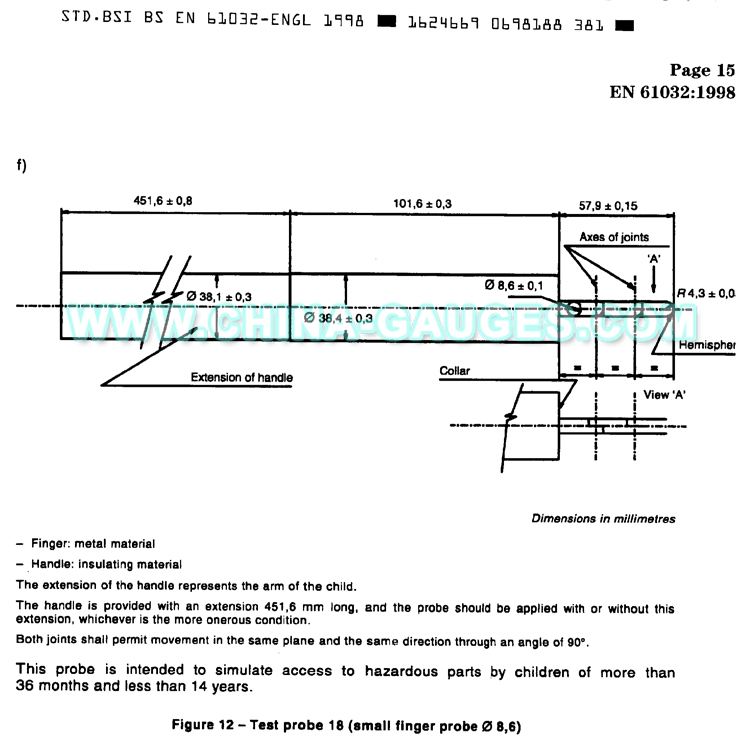

4) According to EN 61032:1998 Figure 12 (Test Probe 18).

- Finger: metal material

- Handle insulating material

The extension of the handle represents the arm of the child.

The handle is provided with an extension 451,6 mm long, and the probe should be applied with or without this extension,

whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.

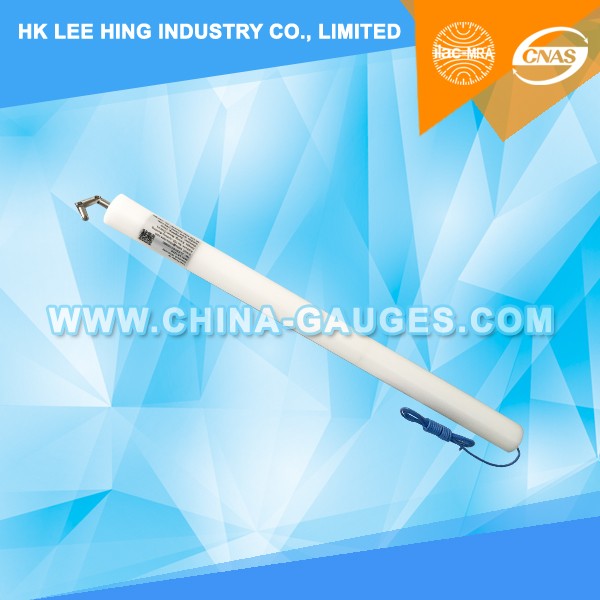

test probe 18
