Test Probe 11 of EN 61032

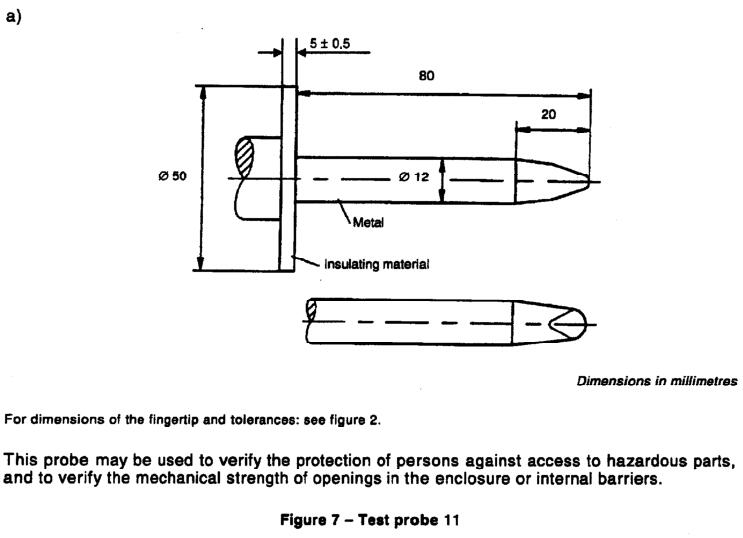

Test Probe 11 of EN 61032 Figure 7

Basic Introduction:

1) According to: BS EN 61032:1998 / IEC 61032:1997.

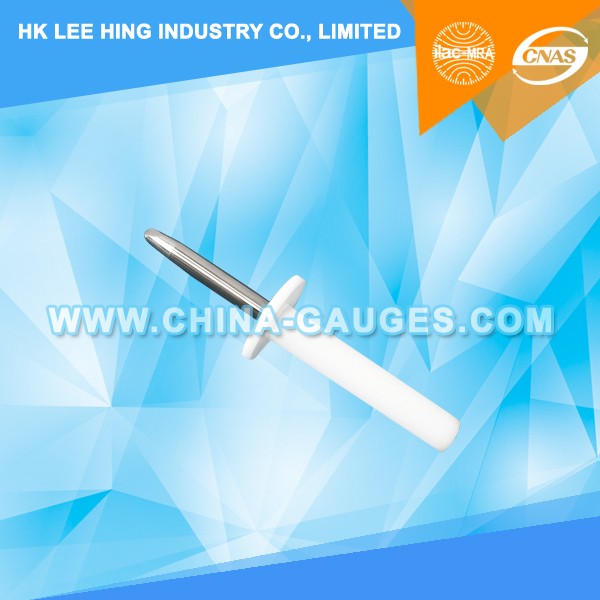

2) The Rigid Test Finger is a precision test probe made according to Figure 7 (Fig. 7) of the EN 61032 (Test probe 11) and is used to simulate a human finger. It is also used by the standards of IEC 61032, CSA, IRAM, UL, IEC 60335, IRAM 4220-1 and in most of the rules involved in the verification of accessibility to live parts.

Technical parameters:

1) Rigid Finger Diameter: 12 mm

2) Rigid Finger Length: 80 mm

3) Baffle Plate Diameter: 50 mm

4) Baffle Plate Length: 5 mm

5) According to EN 61032:1998 Figure 7 (Test Probe 11).

This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.
