Surface Temperature Probe of IEC 60335-2-11

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-T10

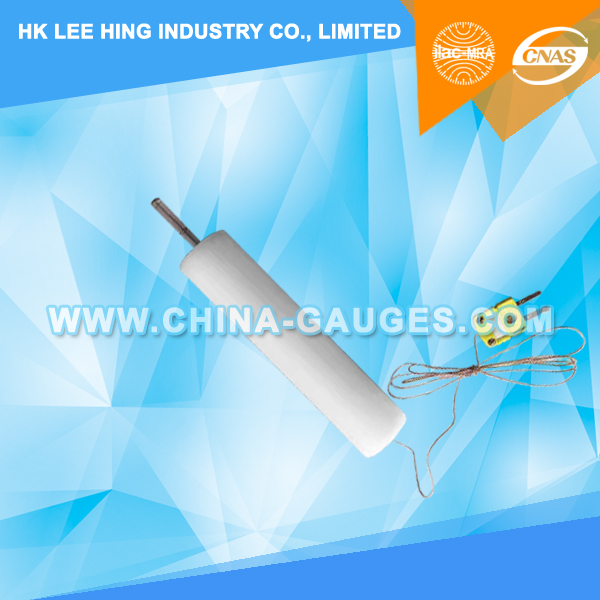

Surface Temperature Probe of IEC 60335-2-11

According to IEC60335-2-11:1993 fig 101 and IEC60335-2-9:2019 Figure 105, such as requirements preconditioning of household and similar electrical appliances drum dryers and in vertical ranges, hobs, ovens and other were surface temperature rise measurement.

Model: LX-T10
Measurement of the surface: Diameter 5 mm * 0.5 mm tin copper
Bushing: Inside diameter 3 mm, Outside diameter 5 mm
Thermocouple: Diameter 0.3 K
Thrust: 4 N

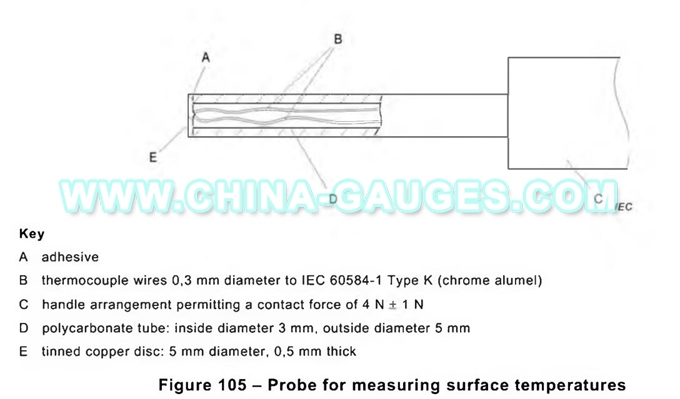

A) Adhesive

B) Thermocouple wires 0,3 mm diameter to IEC 60584-1 Type K(chrome alumel)

C) Handle arrangement permitting a contact force of 4 N ± 1 N

D) Polycarbonate tube: inside diameter 3 mm, outside diameter 5mm

E) Tinned copper disc: 5 mm diameter, 0,5 mm thick

Note: The contgact face of the disc is to be flat.
