IEC60335-2-9 figure 103 Vessel for Testing Hotplates

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-LG05

IEC60335-2-9 Figure 103 Test Vessels

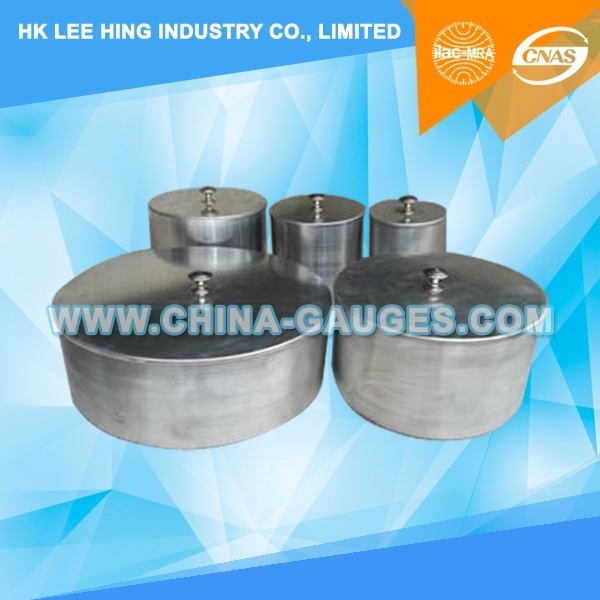

1. The vessels are made of unpolished commercial quality aluminium, have a flat bottom and are covered with a lid.

2. The vessels are met the requirements of IEC 60335-2-9 Figure 103, GB4706.14 Figure 103, EN 30-1-1 2008 (E) Annex C2, GB4706.22 Figure 101, and GB16410-2007 Figure 7 etc standards.

3. Normal operation: Hotplates, other than induction hotplates, are operated with vessels containing water. Controls are adjusted to their highest setting untill the water boils and then adjusted so that the water simmers. water is added to maintain the level during boiling.

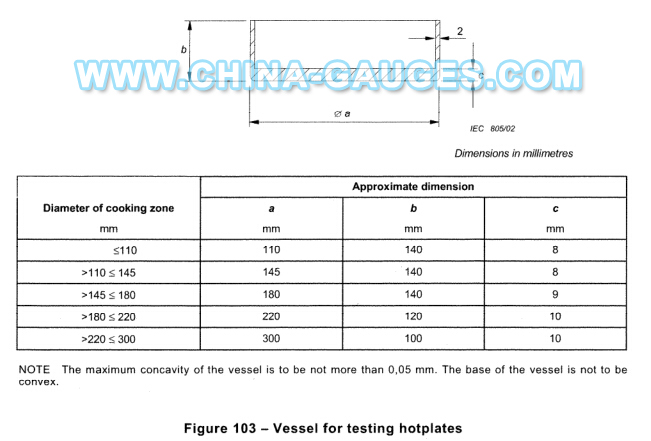

4. Parameters:

Diameter of cooking zone mm	Approximate dimension
Diameter of cooking zone mm	a mm	b mm	c mm
≤110	110	140	8
> 110 ≤ 145	145	140	8
> 145 ≤ 180	180	140	9
> 180 ≤ 220	220	120	10
> 220 ≤ 300	300	100	10

NOTE: The maximum concavity of the vessel is to be not more than 0,05 mm. The base of the vessel is not to be convex.
