IEC60335-2-9 clause 3 figure 104 Vessel for Testing Induction Hotplates

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-DT05

Main parameter:

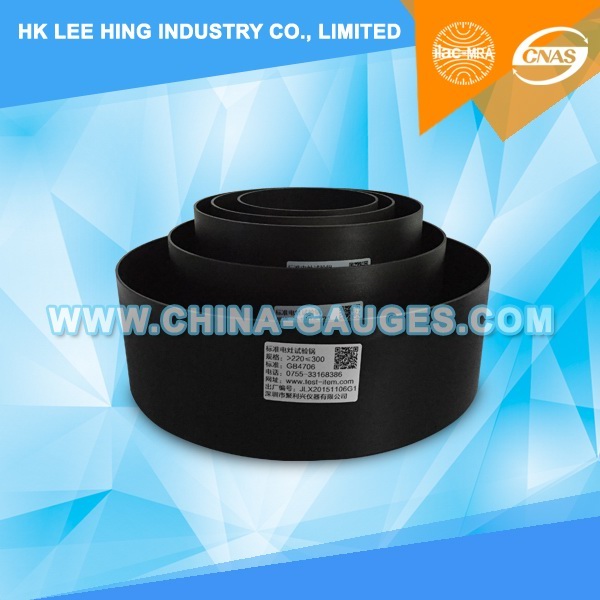

one set with 5 pcs, the diameter is: 110 mm, 145mm, 180mm, 220mm, 300mm

Base and wall thickness: 2mm±0.5mm

The vessel is made of low carbon steel having maximum carbon content of 0.08%

NOTE: The vessel is made of low carbon steel having a maximum carbon content of 0,08 %. It is cylindrical without metallic handles or protrusions. The diameter of the flat area of the base of the vessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the vessel is 0,006 d. The base of the vessel is not to be convex.

Vessel for testing induction hotplates ( IEC60335-2-9 clause 3 figure 104)

Diameter of cooking zone(mm)	Approximate Dimension
Diameter of cooking zone(mm)	Diameter (mm)	Wall highly (mm)	Bottom thickness (mm)	Wall thickness (mm)
≤110	110	140	8	2
>110≤145	145	140	8	2
>145≤180	180	140	9	2
>180≤220	220	120	10	2
>220≤300	300	100	10	2

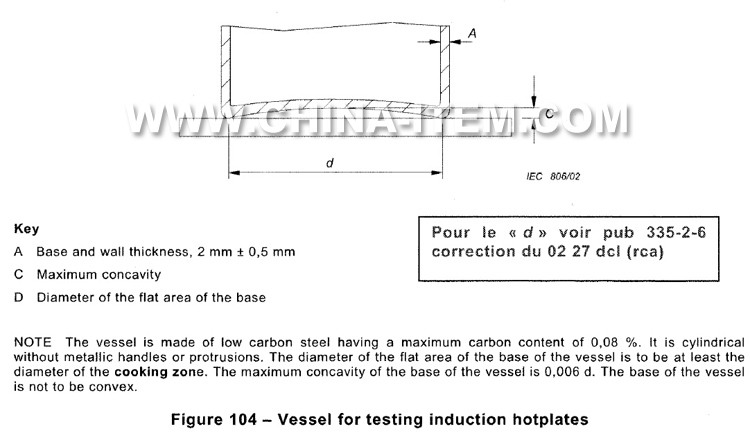

figure 104.jpg
