IEC60061-3: 7006-54-2 Gauge for Finished Lamps Fitted with E14 Caps for Testing Contact Making

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-54-2

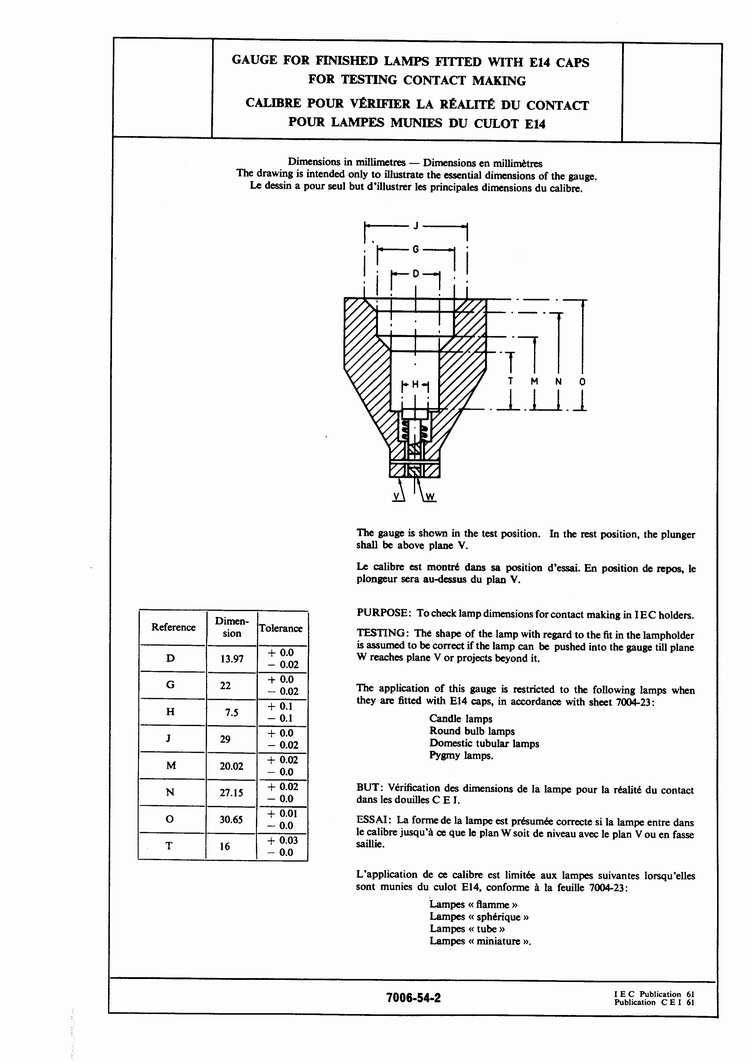

The gauge is shown in the test position. In the rest position, the plunger shall be above plane V.

PURPOSE: To check lamp dimensions for contact making in IEC holders.

TESTING: The shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.

The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23:
Candle lamps
Round bulb lamps
Domestic tubular lamps
Pygmy lamps.
