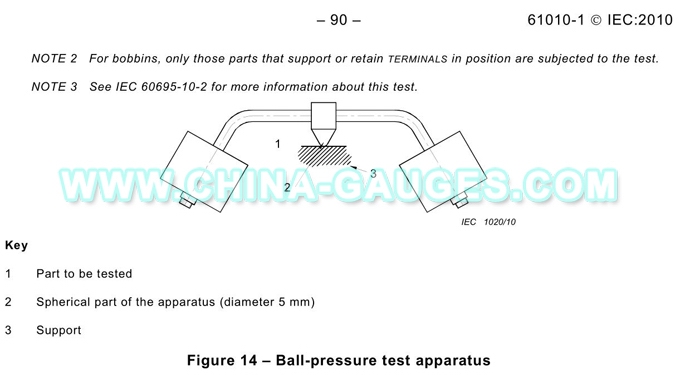

IEC 61010-1 Figure 14 Ball-pressure Test Apparatus

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-Q02

IEC 61010-1 Figure 14 Ball-pressure Test Apparatus

Applicatiion:

Ball-pressure Apparatus is used for testing parts of nonmetallic materials for resistance to heat. It is applicable to electrical equipment,lighting equipment, lowvoltage apparatus, Household electrical appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology equipment, electrical business equipment, electrical fittings and accessories such as electrical and electronic products and its component parts

Ball-pressure Apparatus is the requirement ball(R2.5mm)and total test force 20±0.2N ball pressure testing device,pressure level of the state and was placed in the heating chamber on the surface of the test.

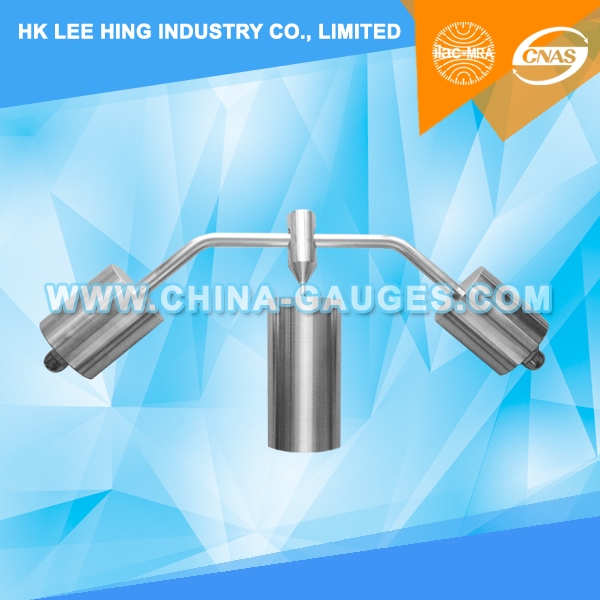

Construction:

Ball holder with bore and clamping screw for the bow
Precision5mmpressure ball
Thermocouple for the test stand
Nickel plated steel materials for good thermal stability

Technical Parameters:

Ball diameter	5mm (R2.5mm)
Total test pressure	20N±0.2N
Samples bearing	diameter50mm, length100mm, solid stanless steel cylinder
Production of materials	all used stainless steel materials
Remark	Ball pressure instrument takes another a hot box (oven) supporting the use.

Resistance to heat

Self-ballasted lamps shall be sufficiently resistant to heat. External parts of insulating material providing protection against electric shock, and parts of insulating material retaining live parts in position shall be sufficiently resistant to heat.

Compliance is checked by subjecting the parts to a ball-pressure test by means of the apparatus shown.

The test is made in a heating cabinet at a temperature of (25 ± 5) °C in excess of the operating temperature of the relevant part according to clause 9, with a minimum of125 °Cfor parts retaining live parts in position and80 °C* for other parts. The surface of the part to be tested is placed in the horizontal position and a steel ball of5 mmdiameter pressed against this surface with a force of 20 N.

The test load and the supporting means are placed within the heating cabinet for a sufficient time to ensure that they have attained the stabilized testing temperature before the test commences.

The part to be tested is placed in the heating cabinet, for a period of 10 min, before the test load is applied.

If the surface under test bends, the part where the ball presses is supported. For this purpose if the test cannot be made on the complete specimen, a suitable part may be cut from it.

The specimen shall be at least 2,5 mmthick, but if such a thickness is not available on the specimen then two or more pieces are placed together.

After 1 hour the ball is removed from the specimen which is then immersed for 10 s in cold water for cooling down to approximately room temperature. The diameter of the impression is measured, and shall not exceed2 mm.

In the event of curved surfaces the shorter axis is measured if the indent is elliptical.

In case of doubt, the depth of the impression is measured and the diameter calculated using the formula f = 2 p (5 - p) , in which p = depth of impression.

The test is not made on parts of ceramic material.
