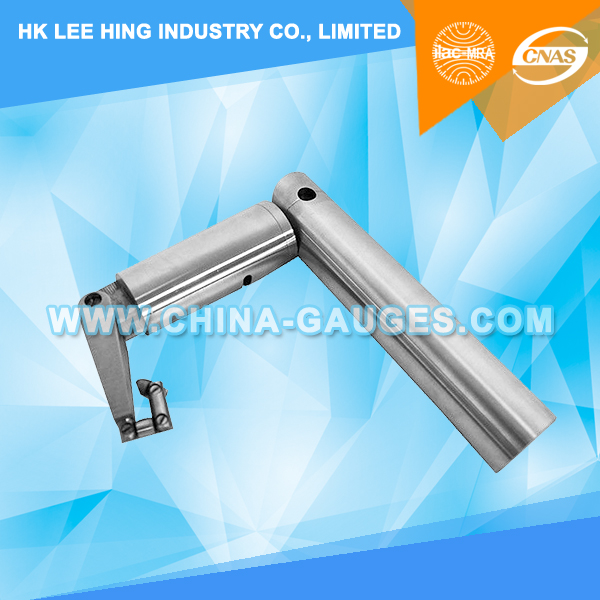

Accessibility Probe of UL 1017 Figure 25

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-SU0252

Product Overview:

This accessibility probe is designed and manufactured according to UL1017 : 2018 figure 25 and figure 26, CSA C22.2 No.243-17.etc. Its dimensions apply to the 13-18 month age bracket (male and female).

This test probe is used to test whether the simulated arm will touch the running parts (such as rotor, pulley, belt, gear, etc.) inside the vacuum cleaner during normal use.

Technical Parameters:

Upper arm circumference-female-5th percentile	11.9 cm (4.685 in)
Shoulder to elbow length-male-95th percentile	16.8 cm (6.61 in)
Forearm circumference -femae-5th percentile	12.1 cm (4.76 in)
Lower arm length-male-95 percentile	22.7 cm (8.94 in) (Elbow to finger tip)
Minimum hand clearance diameter-female-5th percentile	3.49 cm (1.374 in)
Hand length-male-95th percentile	10.2 cm (4.016 in)
Middle finger length-male-95th percentile	4.5 cm (1.772 in)
Middle finger diameter-female-5th percentile	0.79 cm (0.311 in)
Note:	All dimensions apply to the 13-18 month age bracket (male and female).
Probe material	Stainless steel

Test procedures :

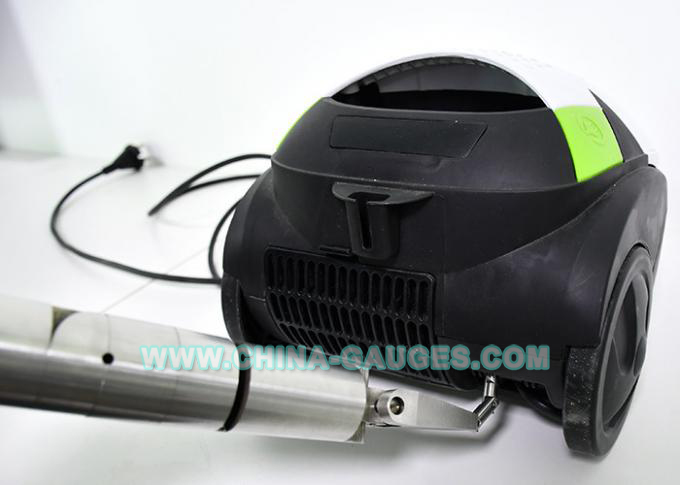

Shown as following photo, using the test arm to simulate a human hand touching the vacuum cleaner housing to determine whether the test probe can touch vacuum cleaner's internal parts through the housing.

su0252
