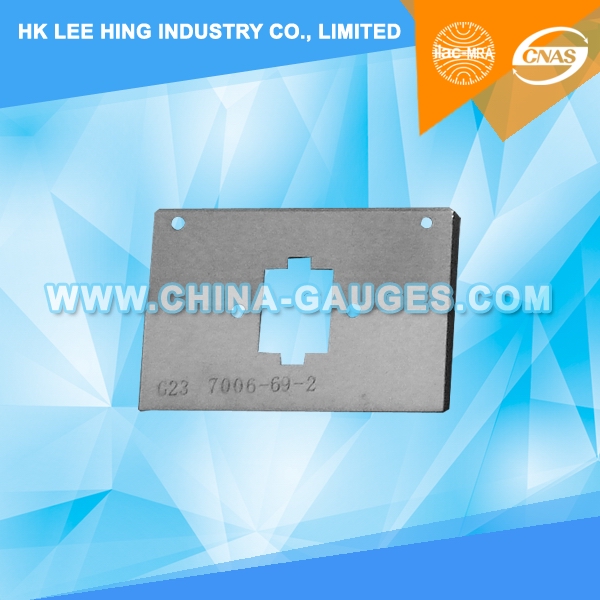

7006-69-2 G23 Go and Not Go Gauge for Bi-pin Caps on finished Lamps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-69-2

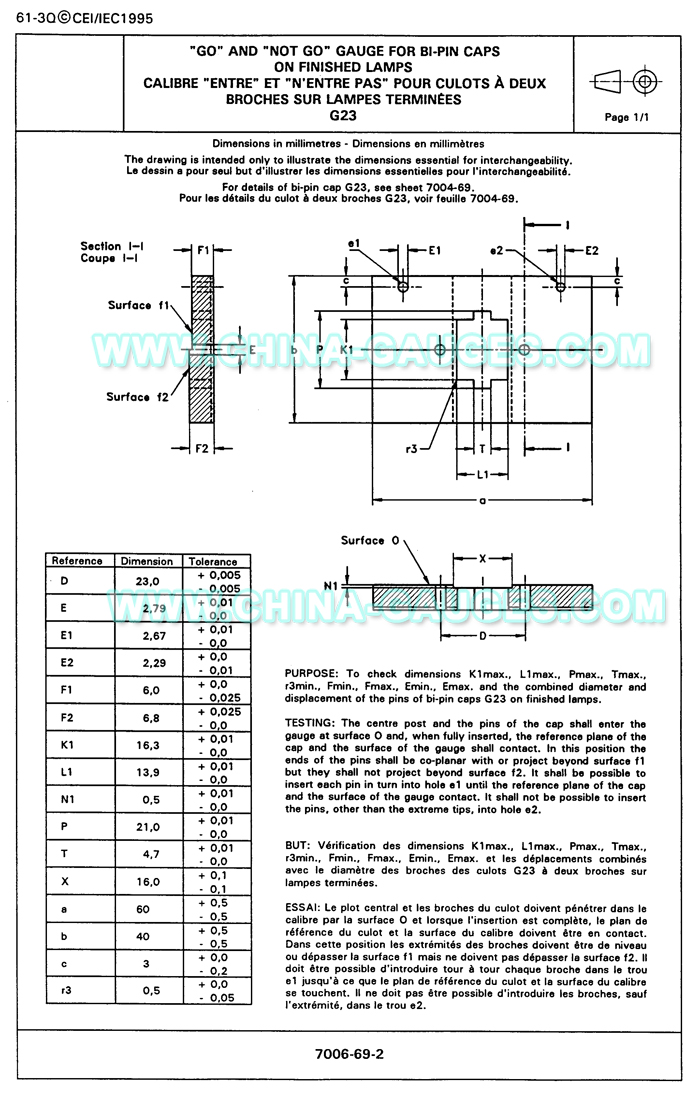

7006-69-2 G23 Go and Not Go Gauge for Bi-pin Caps on finished Lamps

PURPOSE:

To check dimensions K1 max., L1 max., P max., T max., r3min., Fmin., Fmax., Emin., Emax. and the combined diameter and displacement of the pins of bi-pin caps G23 on finished lamps.

TESTING:
The centre post and the pins of the cap shall enter the gauge at surface O and, when fully inserted, the reference plane of the cap and the surface of the gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface f1 insert each pin in turn into hole e1 until the reference plane of the cap and the surface of the gauge contact. It shall not be possible to insert the pins, other than the extreme tips, into hole e2.
