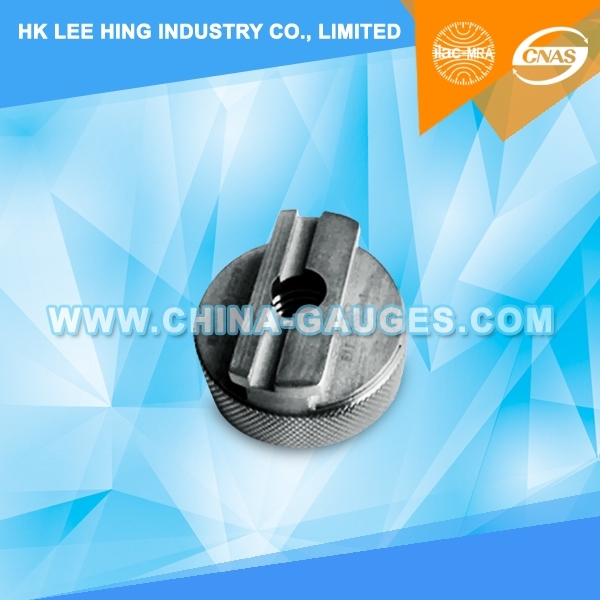

7006-6-1 E11 Go Gauge for Caps on Finished Lamps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-6-1

7006-6-1 E11 Go Gauge for Caps on Finished Lamps

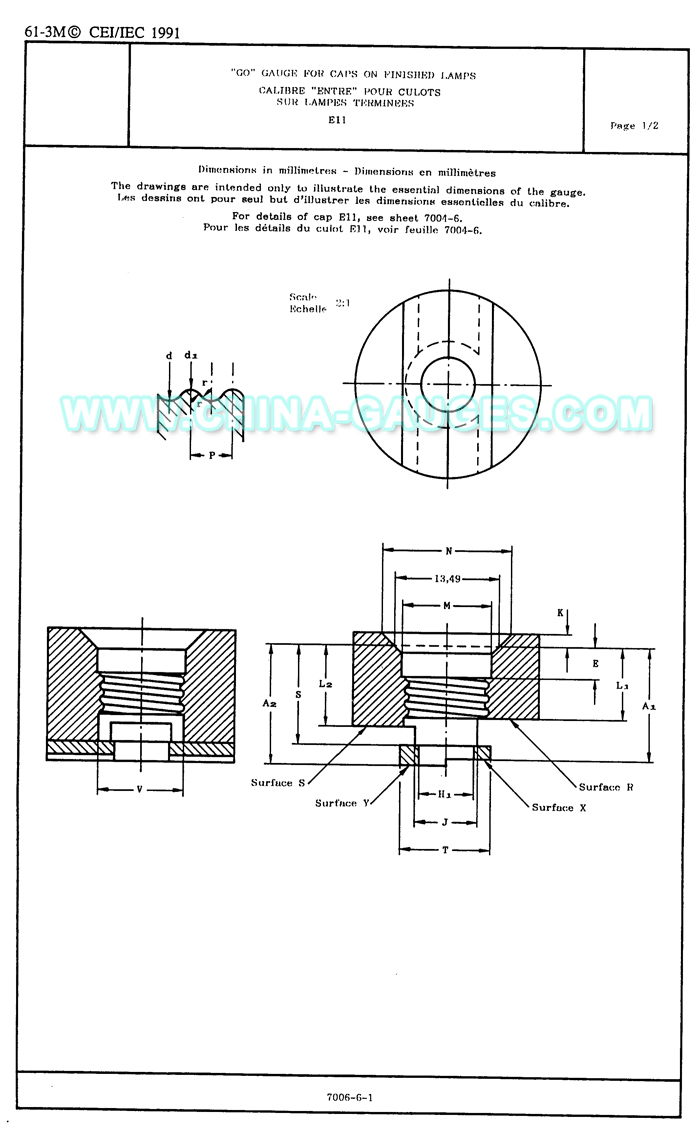

According to standard IEC 60061-3

PURPOSE: To check the maximum dimensions of the screw thread and dimensions A2 min., A2 mx., L min. and L max. of E11 caps on finished lamps.

TESTING: The cap shall enter the gauge until the sloping shoulder of the cap seats against the chamfer at the entrance of the gauge.

In this position the bottom of the metal shell shall be co-planar with or project beyond surface R, but shall not project beyond surface S.

Also the ultimate surface of the centre contact shall be co-palanar with or project beyond surface X, but shall not project beyond surface Y.
