Striking Element for 2J, 5J, 10J, 20J, 50J

Photos

Striking Element for 2J, 5J, 10J, 20J, 50J

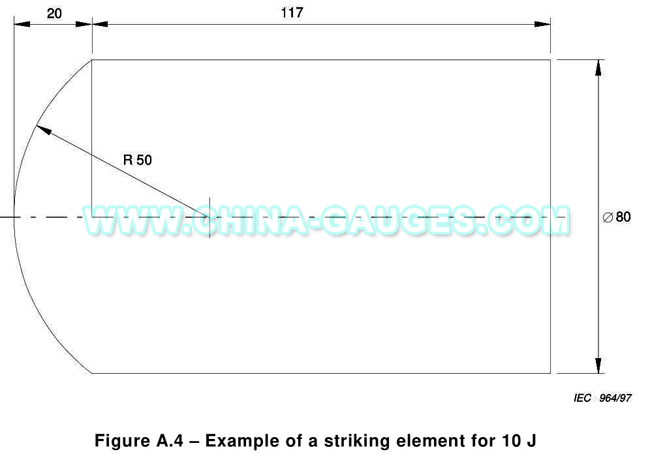

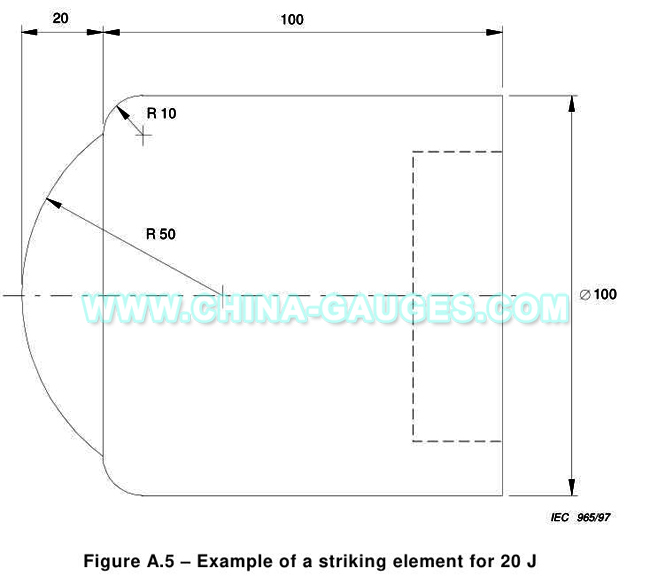

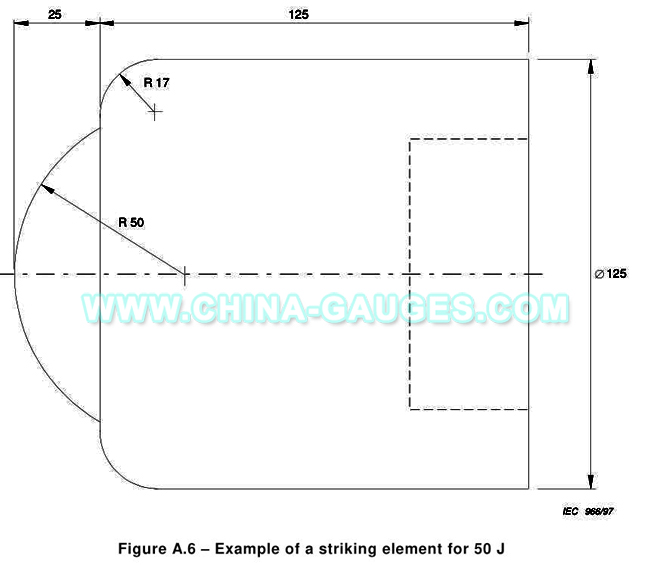

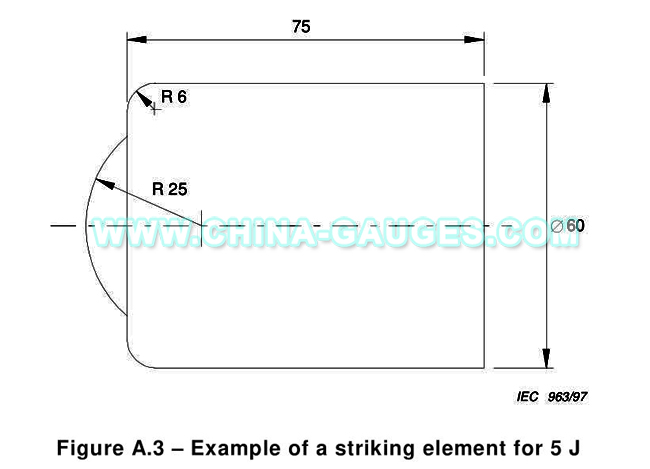

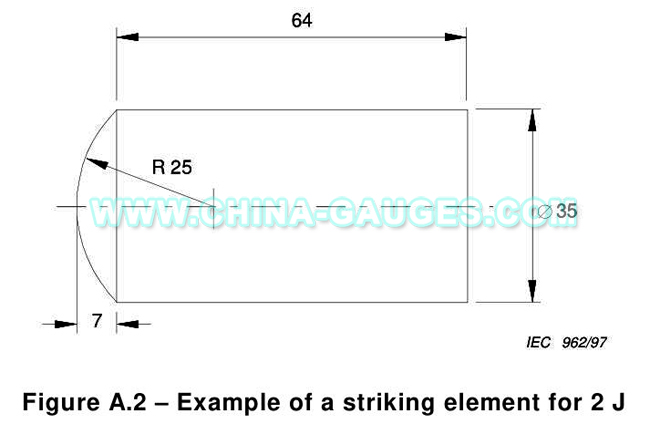

According to IEC60068-2-75 table 1, table 2 and Figure A.2, Figure A.3, Figure A.4, Figure A.5, Figure A.6.

Energy	5 J	10 J	20 J	50 J
Equivalent Mass ( kg, ±2%)	1.7	5	5	10
Height of Dropping ±1%/mm	300	200	400	500
Diameter ( mm )	60	80	100	125

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services andrelated information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
