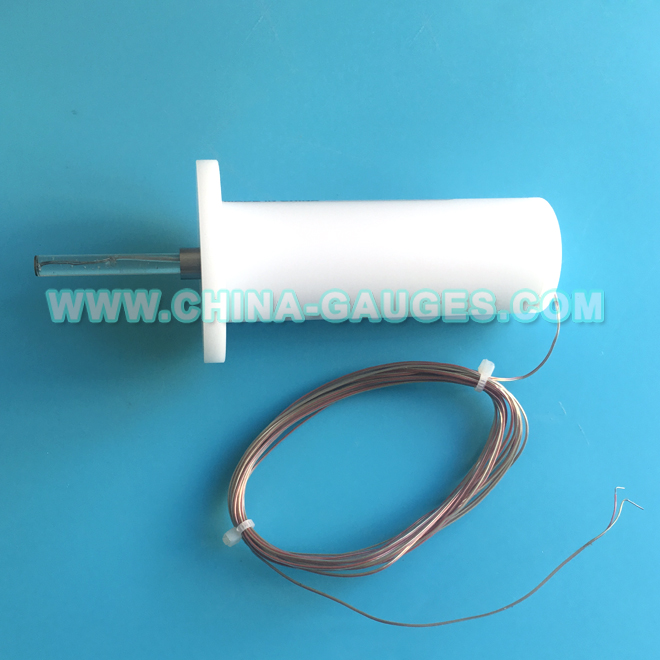

Measuring Surface Temperatures Probe of IEC 60335-2-9 Figure 105

Test Probe According to IEC 60335-2-9 Figure 105, such as requirements preconditioning of household and similar electrical appliances drum dryers and in vertical ranges, hobs, ovens and other were surface temperature rise measurement.

Model: LX-T20

Measurement of the surface: Diameter5 mm*0.5 mmtin copper

Bushing: Inside diameter3 mm, Outside diameter5 mm

Thermocouple: Diameter 0.3 K

Thrust: 4 N

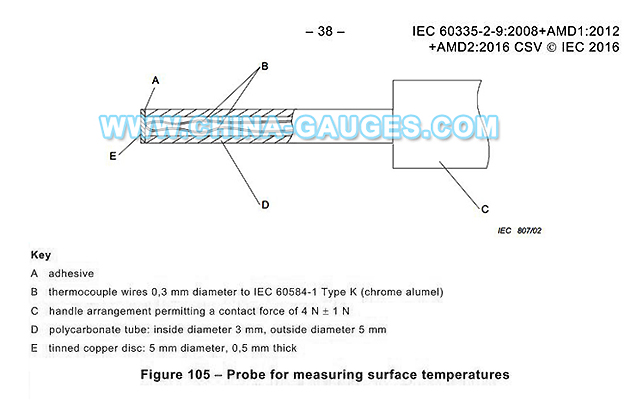

A) Adhesive

B) Thermocouple wires 0,3 mmdiameter to IEC 60584-1 Type K(chrome alumel)

C) Handle arrangement permitting a contact force of 4 N ± 1 N

D) Polycarbonate tube: inside diameter3 mm, outside diameter5mm

E) Tinned copper disc:5 mmdiameter, 0,5 mmthick

Note: The contgact face of the disc is to be flat.
