IPX5 Test Device to Verify Protection Against Water Jets (hose nozzle)

Photos

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the

wrapper of equipment in fulfillment of IPX5 according to the IEC 60529 Section 14.2.5.

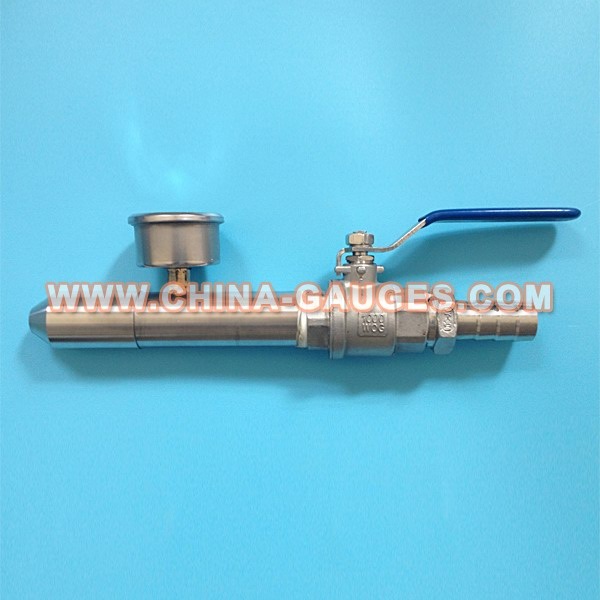

The device consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Item	IPX5
Water supply	Water flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment.
The nozzle diameter	6.3 mm
Water flow	12.5±0.625L/min, Flow meter is adjustable.
Testing time	Not less than 1min/m2 (not less than 3 mins)
Environment requirements	Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation.
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel
Include	Pressure gauge, Stainless steel nozzle IPX5 , Valve for water flow regulation and shut off, Hose connector.
