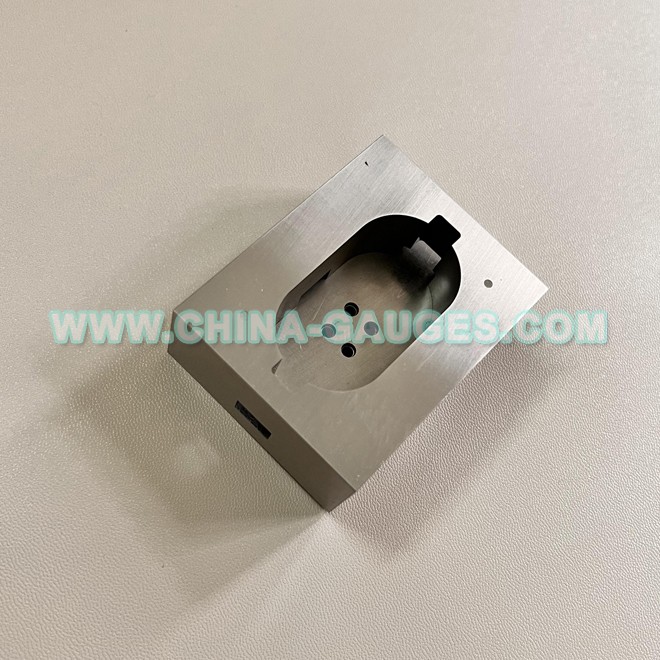

GY10q Go Gauge for Caps on Finished Lamps 7006-85-2

Photos

GY10q Go Gauge for Caps on Finished Lamps 7006-85-2

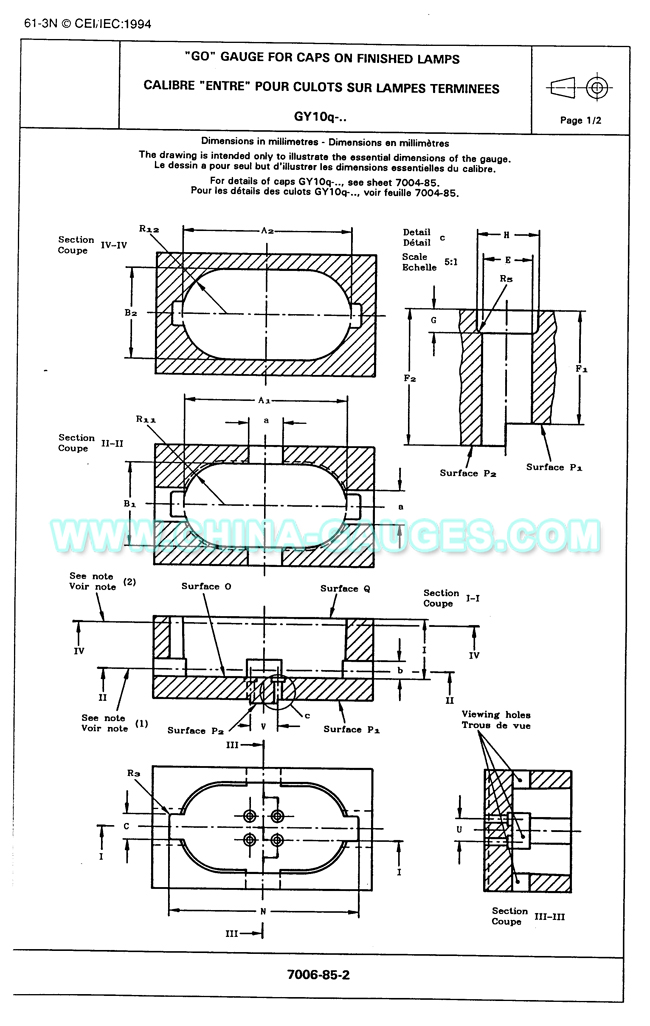

PURPOSE: To check the main fit dimensions of caps GY10q

Note. - The dimensions of the key way are checked separately.

TESTING: The cap and the pins of the cap shall enter the gauge until surface 0 of the gauge is in contact with the refernce plane of the cap, using only the mass of the guage itself.

In this position, the ends of the four pins shall be co-planar with, or project beyond surface P1, but they shall not project beyond surface P2.

The upper part of the cap shall not be below surface Q of the gauge.
