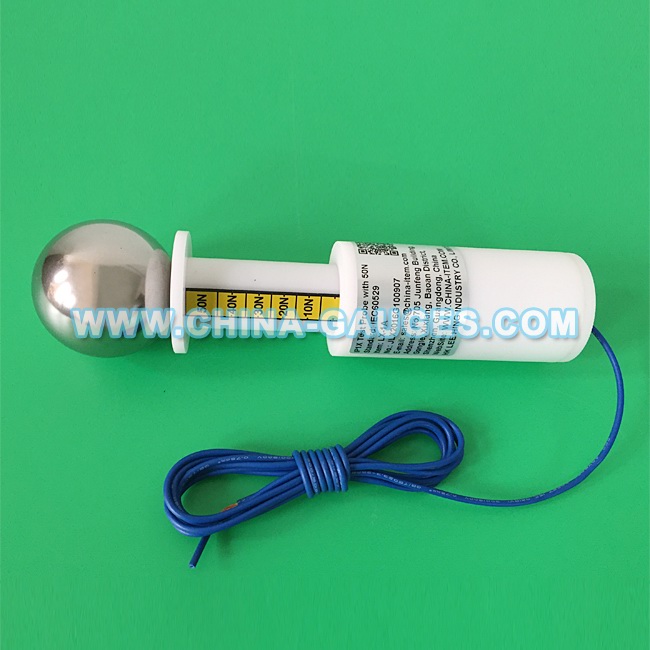

50 mm Ball Accessibility Probe with Handle

Specification:

IP1X Probe A  / Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001 and UL etc.
2, IP1X Probe A (Test Probe A) is necessary appliance for household and similar electrical appliance of against electric shock protection test.


Technical Parameters:

1. Ball Diameter: 50 mm
2. Total Length: 210 mm
3. Baffle Plate Diameter: 45 mm
4. Baffle Plate Thickness: 4 mm
5. Handle Diameter: 45 mm
6. Handle Length: 95 mm
7. According to IEC 61032 figure 1 (the Test probe A), table 6 the first characteristics (1).


Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 N thrust.
